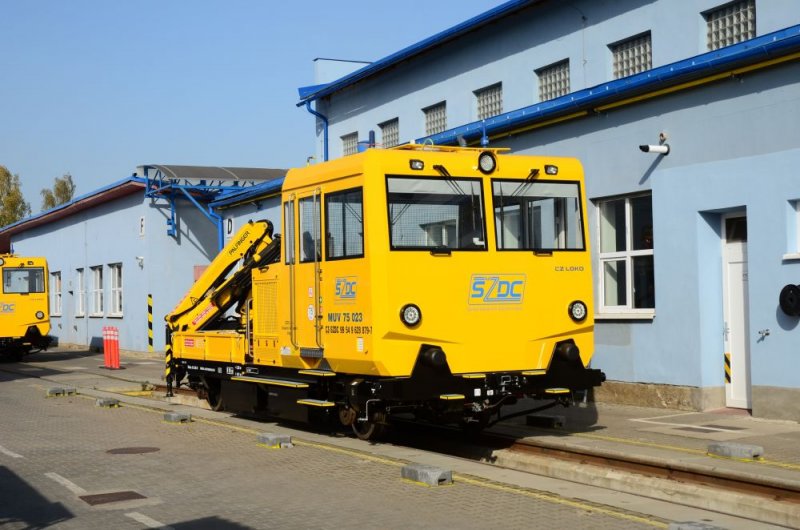

Universal motor truck MUV 75

The universal motor truck MUV 75 is designed for railway line maintenance. The vehicle is equipped with hydrostatic power transmission from the diesel engine to two powered wheelsets.

Parameters

Track gauge 1 435 mm
Meets the standards EN
Number of powered axles 2
Wheelset arrangement Bo
Maximum operating speed 75 km/h
Minimum curve radius 90 m
Power transmission hydrostatic
Diesel engine CAT C4.4
EU Stage IIIB
Engine output 130 kW
Maximum towing capacity 16 kN
Nominal weight 14,7 t
Axle load 7,35t
Fuel tank volume 300 l
Cargo weight max. 5 t
Number of seats 1+6
Climate class -25 to +40 ºC

Advantages and Benefits

  • high reliability
  • low operating and maintenance costs
  • environmentally friendly operation
  • modern concept and design
  • application of unified solutions
  • high comfort and operator safety
  • excellent visibility
  • service period: 1 000 km / 3 months

Equipment

  • digital control system
  • cruise control
  • operating speed 2 to 10 km/h
  • air drier
  • stored-energy spring-actuated parking brake
  • disc brake

Files to download

Model  Drawing (399 kB)

Equipment on demand

  • hydraulic loading crane with remote control
  • rotator, hook, grab, shovel dipper, drill, etc.
  • grass mower
  • sweeper for cleaning of platforms
  • and other areas
  • snow cutter
  • snow-plough
  • storage tank superstructure
  • mobile workshop
  • trolley superstructure
  • vacuum cleaner
  • shredder
  • gravel sand plough
  • GPK measuring system etc.

A two-axle undercarriage of the vehicle consists of a wheelset with the internal seating of axle bearings and suspension. There is an individual hydraulic motor for each wheelset. The drive unit is located behind the driver’s cab and consists of the Caterpillar diesel engine and a hydraulic block of Parker components. Behind the drive unit there is a freight compartment with folding and removable sides. Under the main frame there is a fuel tank, vehicle accumulators and a pneumatic block. Protective fender elements are installed on the front of the vehicle at buffer height. Spring-loaded couplers can be installed on the vehicle. Fixtures for transport of rails with various lengths are installed on the sides of the vehicle. The vehicle offers the speed mode for driving at 0 – 75 km/h and a working speed mode at 2 –10 km/h. The vehicle is equipped with an air brake and a parking (stored-energy) brake.
