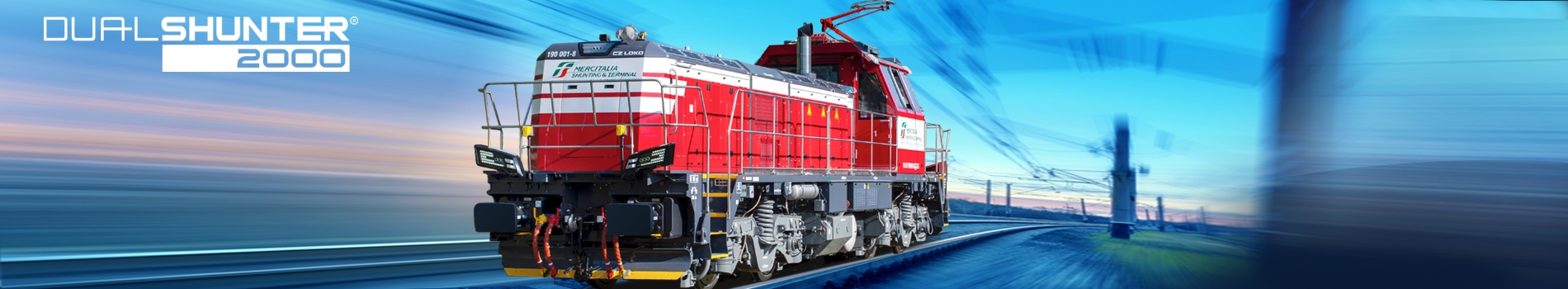

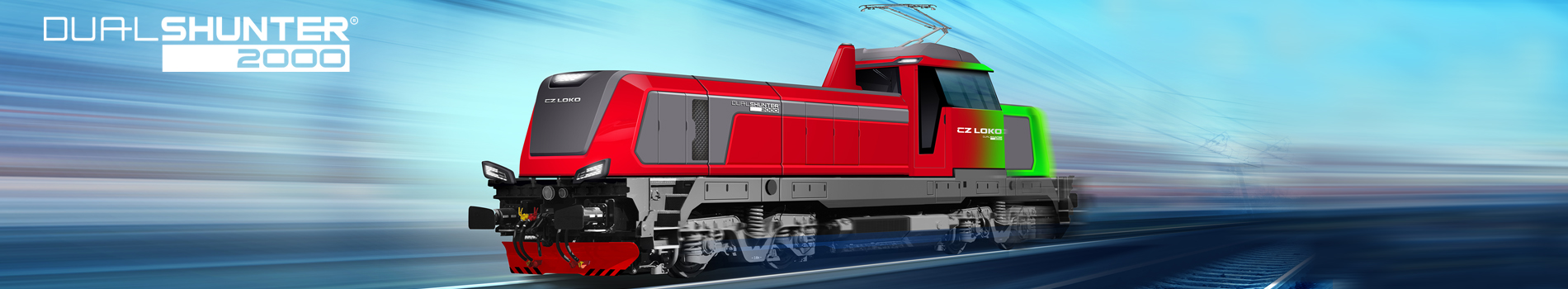

    DualShunter 2000DualShunter 2000

    DualShunter 2000 is designed for medium-duty shunting and line service on electrified 3kV DC or 25 kV 50 Hz AC / 15 kV 16,7 Hz AC lines and, for operation with independent traction, it is equipped with a 895 kW Caterpillar C32 EU stage V diesel engine. As a result, it possible to take advantage of dependent traction when hauling freight trains on electrified lines and, at the same time, its sufficiently powerful diesel engine enables trouble-free operation on sidings and lines that are not electrified. This eliminates the need for two locomotives (electric and diesel) or the need to operate a diesel locomotive on electrified lines, which is not only costly, but also bad for the environment. When operated on electrified lines, it is also possible to take advantage of energy recovery when using the EDB.

    Parameters

    Version AC DC
    Track gauge 1 435 mm 1 435 mm
    Complies with TSI TSI
    Undercarriage arrangement B'o B'o B'o B'o
    Maximum operating speed 100 km/h 100 km/h
    Maximum curve radius 80 m 80 m
    Line class B1 B1
    Railway electrification system 25 kV 50 Hz / 15 kV 16,7 Hz 3 kV DC
    Power transmission AC/AC AC/AC
    Diesel engine CAT C32 CAT C32
    EU Stage V V
    Catenary power 2 200 kW 2 200 kW
    Diesel engine output 895 kW 895 kW
    Maximum traction force 270 kN 270 kN
    Nominal weight 80 t 80 t
    Compressor output 153 m3/h 153 m3/h
    Fuel tank volume min. 2 000 l min. 2 000 l
    Climate class -40 to +45 ºC -40 to +45 ºC
    Lenght over buffers 18 000 mm 16 400 mm
    Height 4 280 mm 4 280 mm
    Width 3 060 mm 3 060 mm
    Vehicle outline G1 G1

    Advantages and Benefits

    • high reliability
    • low operating and maintenance costs
    • electric AC/AC power transmission
    • individually powered traction motors
    • environmentally friendly operation
    • modern concept and design
    • application of unified solutions
    • high comfort and operator safety
    • excellent visibility
    • spacious and safe platforms for shunters
    • service period: 30 000 km / 2 months

    Equipment

    • digital control system
    • cruise control
    • online monitoring
    • multiple control
    • FLEXI-COIL suspension
    • rolling fitting of traction motors
    • air drier
    • disc brake
    • electrodynamic brake (EDB)
    • stored-energy spring-actuated parking brake
    • wheel slide protection and antiskid device

    Equipment on demand

    • remote radio control
    • camera system
    • ETCS
